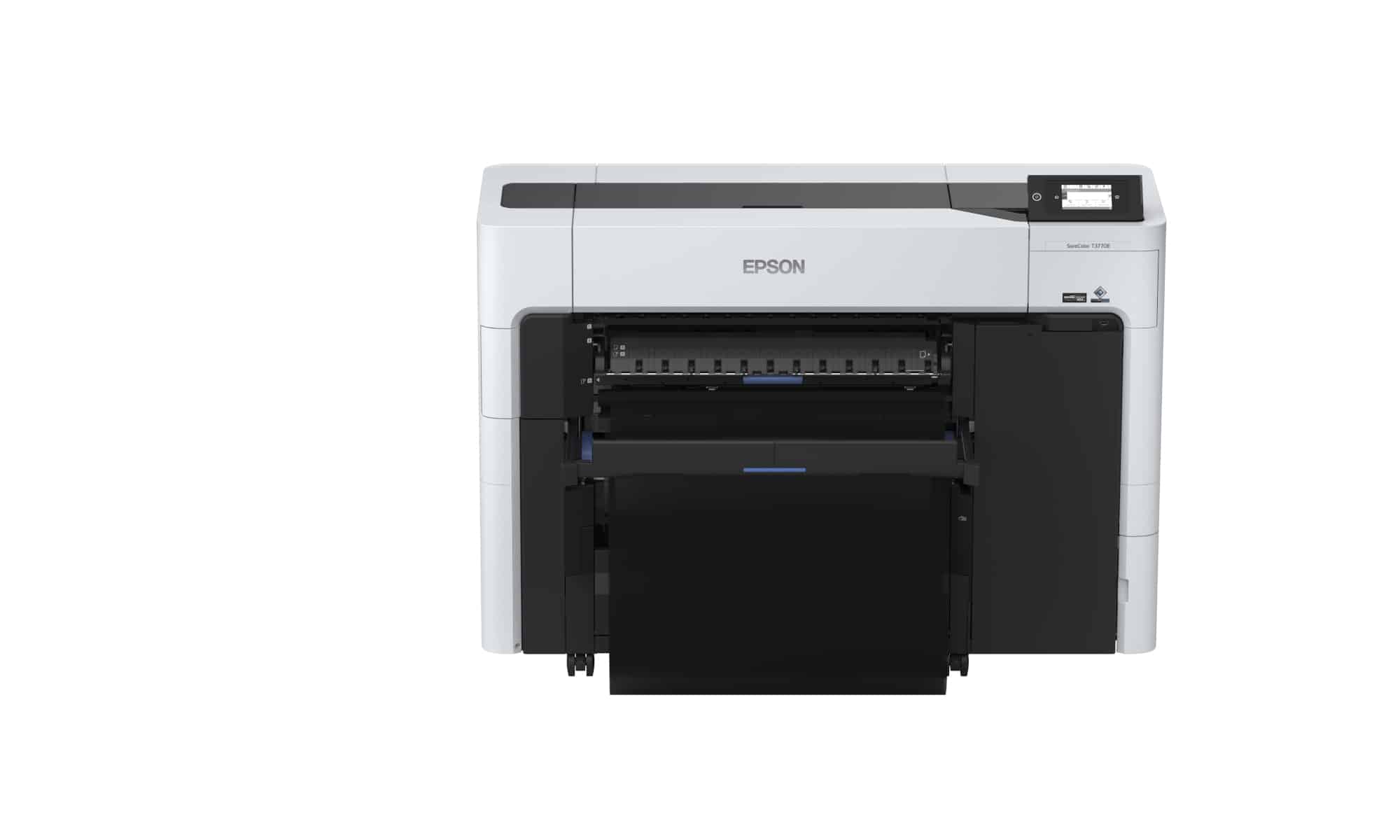

High-performance 24-inch single-roll large-format printer designed for CAD, technical, and production graphics printing.
Delivers A1/D-size prints in as little as 16 seconds with a PrecisionCore MicroTFP printhead.
Equipped with UltraChrome XD3 6-color pigment ink including Red for a broader color gamut and superior detail.
Innovative flat-top design allows full front operation and space-saving installation for office or studio environments.
Prints on various media types, including glossy, matte, technical, and specialty papers, as well as rigid poster board up to 1.5 mm thick.
Built for speed, quality, and ease of use with automatic roll loading and routine self-maintenance features.
Print Technology and Performance
Utilizes a 6-channel PrecisionCore MicroTFP printhead with 9,600 nozzles (1,600 per channel).
Supports variable droplet sizes with a minimum droplet size of 3.5 picoliters for high-fidelity imaging.
Print resolution reaches up to 2400 x 1200 dpi for precise line rendering and color depth.
Automatic switching between Matte and Photo Black channels depending on media type.
Compatible printer languages include Epson ESC/P raster, HP-GL/2, and HP RTL for professional workflows.
Onboard memory of 4 GB supports efficient job processing and spooling.
Media Handling
Accepts roll media from 10″ up to 24″ in width using 2″ or 3″ core adapters with user-adjustable spindles.
Maximum roll diameter: 6.69″; Roll weight capacity: 27 lbs.
Handles media thickness from 0.07 mm to 0.8 mm; sheet media up to 1.5 mm thick supported.
Printable area includes standard margins of 3 mm, or edge-to-edge printing with BorderFree® supported at specific widths (10″, 13″, 16″, 17″, 20″, 24″).
Maximum printable length up to 298 feet for long-format applications.
Equipped with a high-speed internal rotary cutter for automatic or manual cutting, with easy replacement when needed.
Real-time barcode tracking system helps monitor remaining roll length from the touchscreen interface.
Connectivity and Software
Offers flexible connection options including SuperSpeed USB 3.0, Ethernet (100/1000BASE-T), and dual-band Wi-Fi (802.11 b/g/n/ac).
Optional USB expansion for RFID card reader support.
Optional 960 GB SSD available for local job storage and advanced queue management.
Compatible with Windows XP through Windows 10, Windows Server versions, and macOS 10.9.5 and newer.
Bundled software includes EpsonNet Setup, EpsonNet Print, Epson Cloud Solution PORT, Epson Edge Dashboard, Epson Media Installer, Epson Device Admin, and Epson Print Admin.
Operational Specs
Device dimensions (storage and operation): 54″ x 20″ x 38″; with basket extended: 54″ x 33″ x 38″.
Total weight: 254 lbs.
Acoustic levels: 49.6 dBA during operation and 6.6 dBA in sleep mode.
Power usage: 75 W while printing, 32 W in ready mode, 2 W in sleep mode, and 0.3 W when powered off.
Certified for ENERGY STAR and RoHS compliance for sustainable operation.
Operating environment: 50 °F to 95 °F with humidity from 20%–80% non-condensing.
Accessories and Supplies
Included in the Box:
SureColor T3770E Printer
Full set of initial 240 mL ink cartridges: Cyan, Magenta, Yellow, Red, Matte Black, Photo Black
Pre-installed Maintenance Box and Borderless Maintenance Box
Roll Media Adapter (24″, pre-installed)
Start Here Poster and AC Power Cable
Optional Ink Cartridges:
110 mL: Cyan (T51A220), Magenta (T51A320), Yellow (T51A420), Matte Black (T51A820), Photo Black (T51A120), Red (T51AF20)
350 mL: Cyan (T50S220), Magenta (T50S320), Yellow (T50S420), Matte Black (T50S820), Photo Black (T50S120), Red (T50SF20)
700 mL: Cyan (T50L220), Magenta (T50L320), Yellow (T50L420), Matte Black (T50L820), Photo Black (T50L120), Red (T50LF20)
